RAD-RW-5BG5‑0650

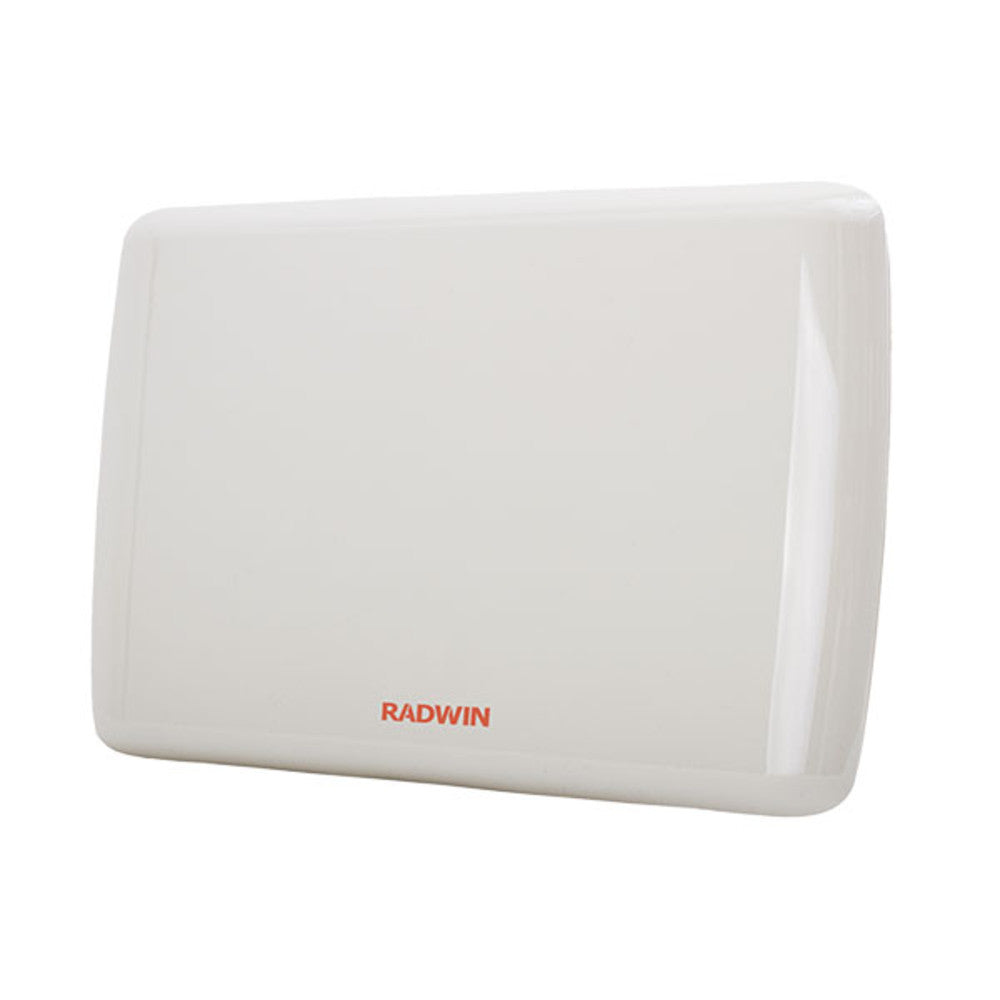

RAD-RW-5BG5‑0650 (RW5000/HBS‑PRO/5BG5/F58/FCC/JET/INT) – a high-performance Sector Base Station in RADWIN’s 5000 series:

📡 Key Features & Capabilities

• Product Type: Outdoor Sector Base Station (HBS‑PRO, part of JET‑PRO family) with integrated beamforming antenna and embedded GPS radwin.com+15winncom.com+15telecomcauliffe.com+15

• Throughput: Up to 750 Mbps net aggregate across subscribers risbo.sg+9winncom.com+9telecomcauliffe.com+9

• Subscribers: Supports up to 64 HSUs (subscriber units) simultaneously winncom.com+7winncom.com+7telecomcauliffe.com+7

• Frequency Coverage: Covers 4.9–5.8 GHz, FCC/FCC‑IC certified; factory-set to 5.8 GHz isp-stock.com+7winncom.com+7winncom.com+7

• Range: Effective coverage up to 40 km (≈25 miles) even in non-line-of-sight scenarios teksys.com+13winncom.com+13connectdata.fr+13

• Modulation & Channel Width: Supports 10/20/40/80 MHz; uses MIMO‑OFDM with adaptive modulation up to 256QAM winncom.com+6winncom.com+6connectdata.fr+6

• Latency: Ultra‑low latency – ~3.5 ms with 2 SUs and ~20 ms with 64 SUs winncom.com+1connectdata.fr+1

• Built‑in QoS & SLA: Per‑SU SLA, 802.1p/DiffServ classification, VLANs, 802.1x, RADIUS, SNMPv1/v3 management winncom.com+1connectdata.fr+1

🛠️ Physical & Environmental Specs

• Integrated Antenna: 20 dBi smart beamforming sector with 90° azimuthal beamwidth inetdeal.com+5winncom.com+5unisolinternational.com+5

• Transmit Power: Max 25 dBm; EIRP up to 36 dBm winncom.com+1connectdata.fr+1

• Housing & Weatherproofing: Rugged IP67 outdoor enclosure; operating range –35 °C to 60 °C; fully condensing humidity rated inetdeal.com

• Power Consumption: Under 30 W via PoE power feed over CAT5e (max cable length 75–100 m depending on data rate) winncom.com

✅ Ideal Use Cases

• High-capacity point-to-multipoint deployments (e.g., municipal wireless, enterprise access, fiber-replacement)

• Long-distance connectivity across challenging terrains (NLOS or partial obstruction)

• Use cases needing strict per-subscriber performance guarantees

📊 Technical Comparison With Similar Radios

💰 Availability & Pricing

• Typical list price around US $6,550, though sale prices (e.g., $5,567) are sometimes advertised inetdeal.com

• Stock levels and lead times vary; distributors like Winncom, TelecomCauliffe, Unisol, Inetdeal, and others list it for quote/PO radwin.com+8winncom.com+8new-prod.telecomcauliffe.com+8

🔎 Considerations & Recommendations

1. Band Configurations: Ship default on 5.8 GHz; request FCC-certified 4.9 or 5.2/5.4 GHz variants if needed.

2. Subscriber Scaling: Ideal for large subscriber base – supports up to 64 users concurrently.

3. Power Infrastructure: Ensure PoE injectors/cabling can support ≤30 W at selected cable length/data rates.

4. Regulatory Compliance: FCC and IC compliance makes it suitable for US and Canadian deployments.

5. Lifecycle & Support: Confirm firmware support, spare parts availability, and warranty coverage from vendor.
