JUNIPER NETWORKS INC
Juniper MX204 2U Edge Router | 8×100G Fixed Interfaces | MPLS/IP/MPLS-TP | Carrier‑Grade Compact Router
Juniper MX204 2U Edge Router | 8×100G Fixed Interfaces | MPLS/IP/MPLS-TP | Carrier‑Grade Compact Router
🚀 Introduction

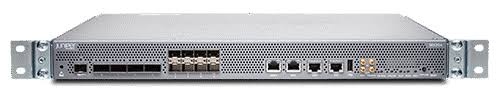

The Juniper MX204 is a compact, yet powerful edge router engineered for service providers and enterprise WAN deployments. Featuring eight built-in 100 GbE ports and rich MPLS/IP/MPLS‑TP capabilities, this 2U router delivers high-performance connectivity in space-constrained environments such as central offices, POPs, and data centers. Ideal for edge aggregation, campus interconnects, and metro networks requiring reliability, automation, and secure scalability.
🔑 Key Features & Benefits
-
⚡ 8×100 GbE Fixed Ports – High-density connectivity without line-cards
-
🌐 MPLS/IP/MPLS-TP Support – Optimized for carrier-grade transport networks
-
📏 2U Compact Design – Saves rack space, ideal for limited-edge environments
-
🧠 Junos OS Nickel+ – Trusted network OS with full automation and programmability
-
💾 Advanced Router Architecture – Includes L2/L3 forwarding, EVPN, Segment Routing, BGP, OSPF, RSVP-TE
-
🛡️ Operator-Grade Resiliency – Redundant AC/DC PSU options and field-replaceable fans
-
🔌 Virtual Chassis Fabric – Stack up to 4 units for unified management and higher port density
-
🔧 Zero-Touch Provisioning (ZTP) – Simplifies large-scale deployment and remote provisioning
🎯 Ideal For
-
🏢 Service Provider & Metro Edge Aggregation
-
🌉 Ethernet WAN and Inter-Data-Centre Links
-
🔒 Enterprise Campus Core & WAN Connectivity
-
🌐 Cloud Interconnect & PoP Deployments
-
🛠️ SD-WAN Backhaul and Automation-Oriented Environments
📊 Specifications at a Glance
| Feature | Specification |
|---|---|
| Form Factor | 2U Rack-Mount |
| Fixed Interfaces | 8×100 GbE (QSFP28) |
| Optional Expansion | 2×100 GbE (Free for future line cards) |
| Routing Engine | Juniper RE‑C5000 series |
| Throughput | 1.6 Tb/s (800 Gb/s full-duplex) |
| Packet Rate | 1.19 Bpps |
| Network OS | Junos OS Nickel+ |
| Automation & Security | Python, Ansible, NETCONF, gRPC, MACsec-ready hardware |
| Redundancy | AC or DC PSU options; redundant fan modules |
| Virtual Chassis | Stack up to 4 units (max 32×100 GbE) |
| Supported Protocols | BGP, OSPF, IS‑IS, EVPN, QoS, IPv4/IPv6 |
| Operating Temp / Power | 0 °C to 45 °C; ~360 W peak |
| Certifications | CE, FCC, RoHS |
🛒 Why Choose PICS Telecom?
PICS Telecom delivers professionally tested, pre-owned Juniper MX204 routers—refurbished to OEM standards and performance-verified. We help reduce CapEx without sacrificing quality, and our solutions include full Junos support and optional extended warranties.
💡 Buy with confidence from a trusted source. Visit www.marketplace.picstelecom.com/MX204 or request a quote at marketplace.picstelecom.com today.
