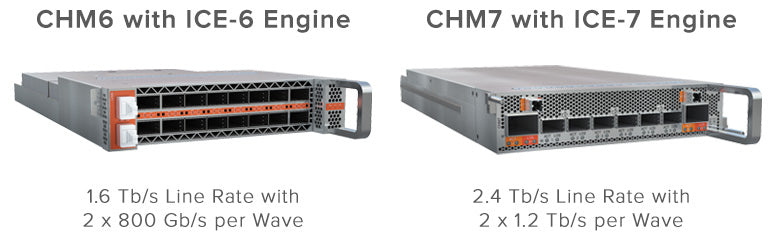

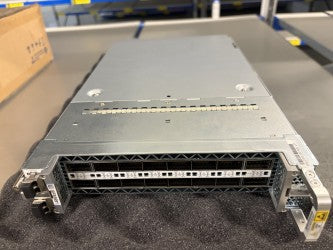

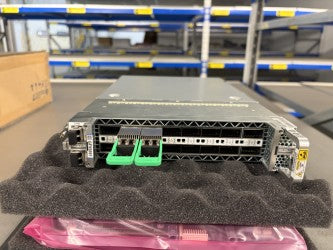

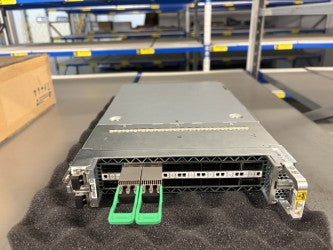

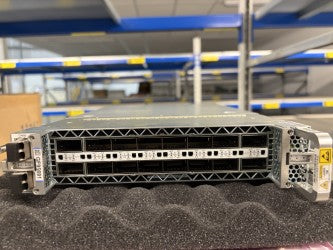

Infinera CHM6‑C6 Coherent 800 G Transponder Module | High‑Capacity C‑Band ICE6

📝 Introduction

The Infinera CHM6‑C6 is a half‑width coherent transponder module for the GX Series chassis, delivering up to 800 Gbps per line using ICE6 technology. Designed for scalability and flexibility, it supports various client interfaces, making it ideal for high‑performance optical networking across metro, regional, and long‑haul applications. A trusted solution for networks needing powerful, modular, and efficient transport gear.

📌 Key Features & Benefits

• 🚀 800 Gbps Line Rate – Maximizes bandwidth while reducing transport cost

• 🧩 1.6 Tbps Client Capacity – Supports flexible combinations of 100 GbE, 400 GbE, and OTU4

• 🌐 Extended C‑Band Coverage – Optimized for flex‑grid DWDM optical networks

• 🔐 Built‑In Layer‑1 Encryption – Delivers secure, low‑latency encrypted transport

• 🛠 Modular & Hot‑Swappable – Compact 1RU sled enables simple plug‑and‑play upgrades

🧭 Ideal For

• 📡 Metro, regional, and long‑haul transport

• 🏢 Cloud and content providers

• 🌐 Telecom and Tier‑1 carriers

• 🔒 Secure wavelength services

📊 Specifications at a Glance

• Chassis Compatibility: GX G40/G42

• Module Form Factor: 1RU, half‑width sled

• Line Rate: Up to 800 Gbps

• Client Ports: Up to 16 × 100 GbE or 4 × 400 GbE

• Total Capacity: Up to 1.6 Tbps

• Optical Band: Extended C‑band

• Encryption: Optional Layer‑1 AES

• Hot‑Swappable: Yes

🔚 Conclusion

The Infinera CHM6‑C6 delivers cutting‑edge optical performance in a modular, flexible form factor—perfect for upgrading networks with next‑gen coherent transport. PICS Telecom offers this unit as part of our extensive lineup of refurbished networking equipment, tested telecom gear, and modular routers. Visit www.picstelecom.com or marketplace.picstelecom.com to check availability or request a quote. Contact PICS Telecom today!
