Cisco 15454‑40‑SMR2‑C – 40‑Channel Single‑Module ROADM with Pre‑amp & Boost for the ONS 15454 MSTP

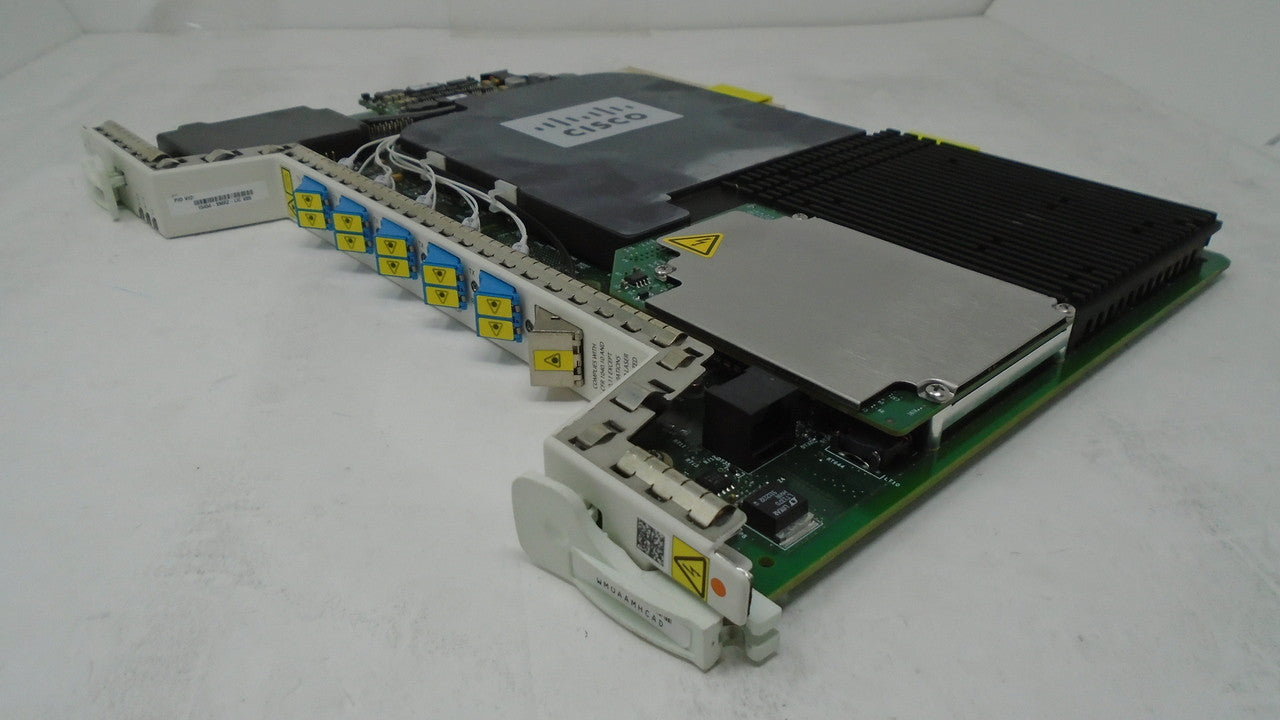

The Cisco 15454‑40‑SMR2‑C is a high‑density, carrier‑class single‑module ROADM (“SMR”) card designed for insertion into the Cisco ONS 15454 MultiService Transport Platform (MSTP). It combines a 40‑channel ROADM, integrated pre‑amplifier and booster amplifier, and supports mesh and multi‑ring topologies up to Degree‑4 nodes. Ideal for service providers or large enterprises deploying high‑capacity DWDM networks, this module supports cost‑effective scaling of metro or regional optical transport. Offered via PICS Telecom’s refurbished networking equipment and tested telecom gear catalog.

🔑 Key Features & Benefits

• 🧮 40‑Channel Single‑Module ROADM (SMR2) – Delivers ROADM functionality with integrated amplifiers, enabling high‑capacity WDM nodes in a single card

• 🔼 Integrated Pre‑Amplifier + Booster Amplifier – Supports signal compensation and output power boosting to overcome fiber attenuation

• ➕ Multi‑Degree Node Support (up to Degree‑4) – Enables add/drop/express routing in up to four directions for flexible mesh or ring topologies

• 🔍 Integrated Optical Service Channel (OSC) Add/Drop Filter & Wavelength Selective Switch (WSS) Core – Offers dynamic wavelength path provisioning and streamlined node architecture

• 📉 Compact Footprint & High Density – By integrating multiple optical functions into one slot, it enables higher throughput and reduces shelf slot consumption

• ✅ Refurbished & Tested – Available through PICS Telecom’s lineup of refurbished networking equipment and tested telecom gear, offering value without sacrificing performance

🎯 Ideal For

• 🌐 Service Provider Backbone and Metro DWDM Networks

• 🏢 Large‑Enterprise Optical Transport / Data‑Center Interconnect

• 🔁 Network Upgrades from Fixed‑Grid to ROADM Architectures

• 💡 Refurbished Networking Equipment Deployments

📊 Specifications at a Glance

• Model: 15454‑40‑SMR2‑C

• Platform Compatibility: Cisco ONS 15454 MSTP series

• Channel Count: 40 channels (100 GHz ITU grid)

• Wavelength Plan: C‑Band odd channels

• ROADM Degree: Supports in‑service upgrade from Degree‑2 to Degree‑4 nodes

• Amplification: 2‑stage pre‑amplifier + boost amplifier; gain range up to ~38 dB; max output power ~17 dBm

• Insertion Loss (typical): ~2.0 to 7.0 dB (varies by path)

• Max Optical Input Power: Up to 500 mW total

• Slot Compatibility: Slots 1‑5 and 12‑16 in ONS 15454 chassis

• Lifecycle Info: End of Sale: August 2025; End of Service Life: August 2030

• Condition: Refurbished, tested telecom gear

✅ Conclusion

If you’re looking to scale your optical transport network with a high‑density ROADM card, the Cisco 15454‑40‑SMR2‑C is an excellent choice. It delivers 40 channels of flexible wavelength routing, integrated amplification, mesh node support, and efficient slot utilization in the Cisco ONS 15454 MSTP chassis. Available now through PICS Telecom’s extensive catalogue of refurbished networking equipment and tested telecom gear. Visit www.picstelecom.com or marketplace.picstelecom.com to request a quote or learn more.
